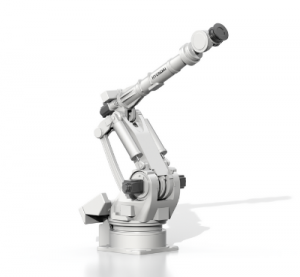

The model HX300L is suitable for arc welding and handling applications.
Datasheet
MODEL |
HX300L |
||
|---|---|---|---|
| Structure | Articulated | ||
| Degree of Freedom | 6 | ||
| Drive Method | AC Servo | ||
| Max. Motion Range | Main Axes | Swivel | ±180° |
| Horizontal | +165° ~ +15° | ||
| Vertical | +60° ~ -70° | ||
| Wrist Axes | R2 | ±360° | |
| B (Bending) | ±120° | ||
| R1 (Twisting) | ±360° | ||
| Max. Speed | Main Axes | Swivel | 95°/s |
| Horizontal | 95°/s | ||
| Vertical | 95°/s | ||
| Wrist Axes | R2 | 100°/s | |
| B (Bending) | 100°/s | ||
| R1 (Twisting) | 160°/s | ||
| Payload | 300 kg | ||
| Allowable Torque | Wrist Axes | R2 | 170 kg f.m |
| B (Bending) | 170 kg f.m | ||
| R1 (Twisting) | 70 kg f.m | ||
| Repeatability | ±0.08 mm | ||
| Ambient temperature | 0~45°C | ||
| Body Weight | 2.685 kg | ||
| Installation method | Floor | ||
| Controller | Hi5a |
| Max. Reach | 3.056 mm |
